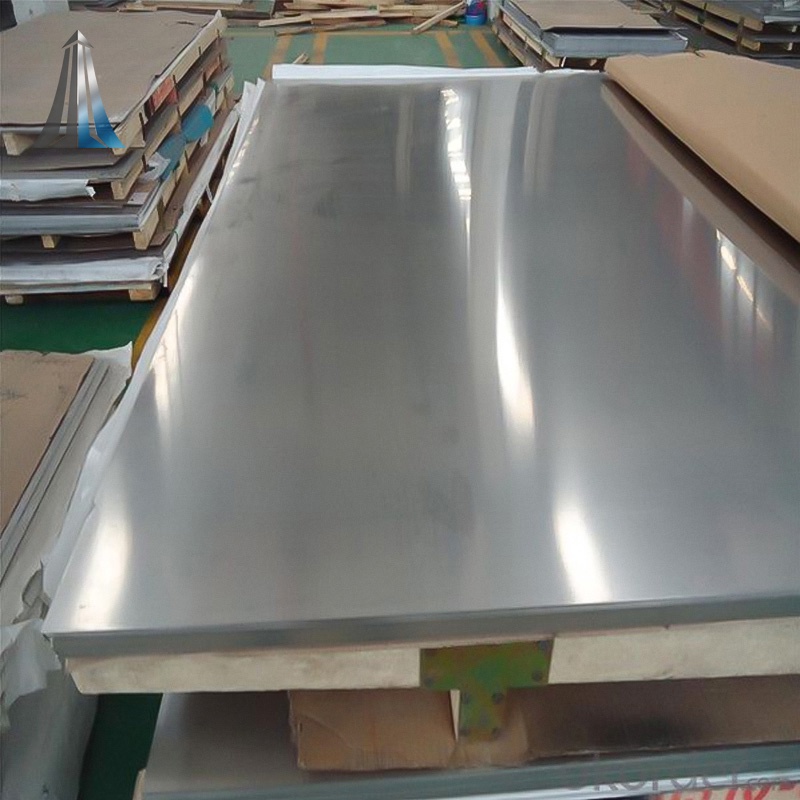

2205 Duplex Stainless Steel Plate

2205 Duplex stainless steel alloy is a duplex stainless steel composed of 22% chromium, 2.5% molybdenum and 4.5% nickel nitrogen alloy. It has high strength, good impact toughness and good overall and local resistance to stress corrosion.

WhatsApp：+840924083465

Email：summitmetal123@outlook.com

Product Description

2205 Duplex Stainless Steel Plate Description

The yield strength of 2205 Duplex stainless steel is more than twice that of ordinary austenitic stainless steel, and it has enough plastic toughness required for molding. The wall thickness of storage tanks or pressure vessels made of duplex stainless steel is 30-50% less than that of commonly used austenite, which is conducive to reducing costs. Moreover, it has good local corrosion resistance, and compared with austenitic stainless steel with similar alloy content, its wear corrosion resistance and fatigue corrosion performance are better than austenitic stainless steel. Whether under dynamic load or static load conditions, 2205 duplex stainless steel has a higher energy absorption capacity than austenitic stainless steel, which has obvious advantages for structural parts to cope with emergencies such as collisions, explosions, etc..

Product Parameters

Product Name	2205 Duplex Stainless Steel Plate
Type	Plate
Thickness	0.3mm-200mm
Length	2000mm, 2438mm, 3000mm, 5800mm, 6000mm, 12000mm, etc.
Width	40mm-600mm, 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc.
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application	Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging, Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.
Certificate	ISO, SGS, BV, etc.
Production Technology	Hot Rolling, Cold Rolling
Edge Processing	Edging, Trimming

Chemical Composition

C	Si	Mn	Cr	Ni	Mo	S	P
≤ 0.03	≤1.0	≤ 2.0	21.0～23.0	4.5～6.5	2.5～3.5	≤ 0.02	≤ 0.03

Mechanical Properties

Tensile Strength Kb (MPa)	Yield Strength σ0.2 (MPa)	Elongation D5 (%)	Hardness
≥620	≥450	≥25	≤ 293HB

Physical Performance

Density(g/cm³)	Modulus of Elasticity(Gpa)	Coefficient of Thermal Expansion(10^-6/°C)	Coefficient of Thermal Conductivity(W/m*K)	Resistivity(ΜΩ. cm)
7.88	190	13.7	19.0	80

Surface Selection

Product Application

Packaging and shipping

Factory Display

FAQ

1. What are your main products?
We primarily deal in carbon steel (hot-rolled/cold-rolled sheets, coils, pipes, and bars), structural steel (angle bars, channel steel, I-beams, H-beams, square/rectangular tubes, etc.), galvanized products (galvanized sheets, coils, pipes, and profiles), and aluminum products (sheets, coils, profiles, and bars). We can also supply other steel varieties based on customer requirements.

2. Are you a manufacturer or a trader?
We are a comprehensive service provider integrating trading, processing, and distribution. We maintain close partnerships with major steel mills in Vietnam and the surrounding region, ensuring a stable supply chain. Additionally, our in-house processing center offers value-added services, combining the flexibility of a trader with the service capabilities of a processing plant.

3. Do you accept small-batch orders? What is the minimum order quantity (MOQ)?
Yes, we support small-batch and trial orders. The MOQ is typically one container (approx. 20–25 tons), depending on product specifications and dimensions. MOQs for aluminum products can be lower; please contact us for details.

4. What is the typical delivery time?
For standard products, delivery takes 15–30 days after receipt of the deposit, depending on order volume, product type, and current production scheduling. Stock items can be delivered sooner. Delivery times for customized orders will be longer, and we will inform you in advance.

5. What payment methods do you accept?
We generally accept T/T (Telegraphic Transfer) and L/C (Letter of Credit). More flexible payment terms can be negotiated for long-term clients. Specific ratios (e.g., 30% down payment and 70% balance) can be adjusted based on the order value and credit status.

6. What processing services do you offer?
We provide services such as cutting, punching, bending, welding, uncoiling, and leveling. We also offer customized deep processing of profiles based on technical drawings. All processing is performed in-house to ensure quality control and timely delivery.
