Products center

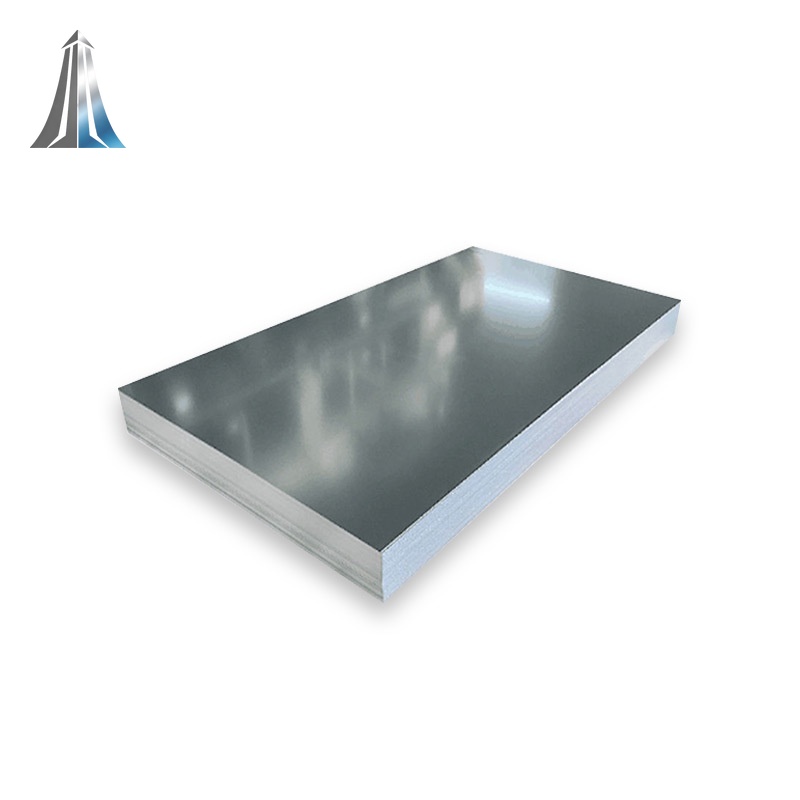

AZ150 galvalume steel sheet has a coating thickness of 18 microns on one side and 36 microns on both sides. The coating alloy of the steel consists of 55% aluminium, 43.4% zinc and 1.6% silica. This coating of steel acts as a passive barrier to general corrosion. It also helps protect steel from trimmed edges and scratches.

AZ55 is the standard for galvanized steel sheets and coils used in a variety of applications, including roofing and siding. The AZ55 name refers to the thickness of the coating on the steel plate, which is between 0.375 and 1.5mm (0.015 and 0.059 inches).

AZ stands for aluminum-zinc alloy, which is the material of the steel coating. AZ50 refers to the total weight of both sides of the aluminum-zinc alloy coating in the three-point test in ASTM a972 standard is 0.50 ounces/square foot, which is equivalent to 150 grams/square meter.

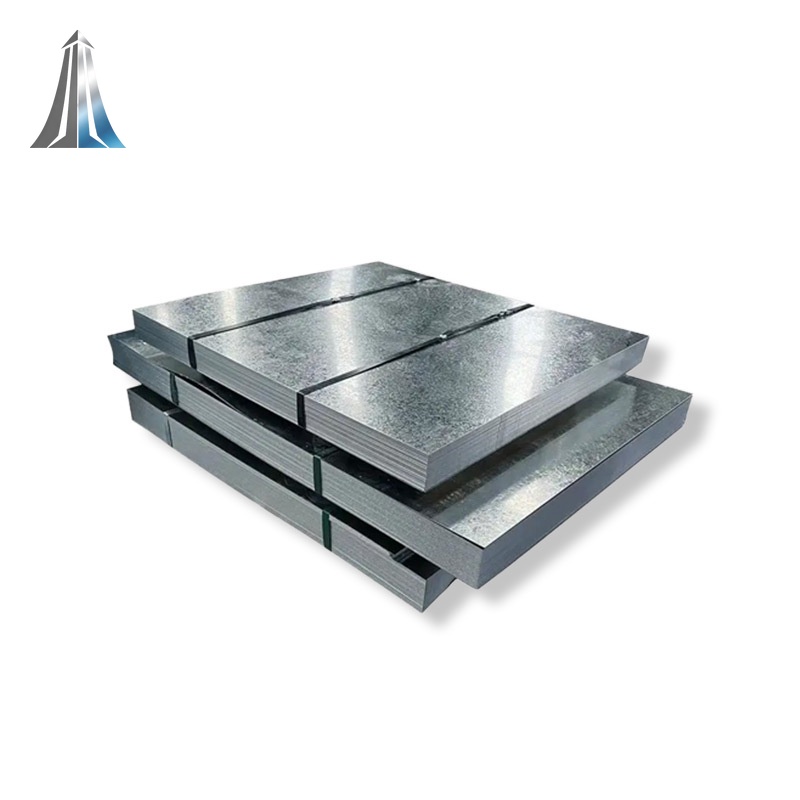

Hot-dip galvanizing is one of the effective means to delay the environmental corrosion of iron and steel materials, it is the surface of the cleaned, activated iron and steel products immersed in molten zinc, through the reaction and diffusion between iron and zinc, in the iron and steel products surface plating good adhesion of zinc alloy coating.

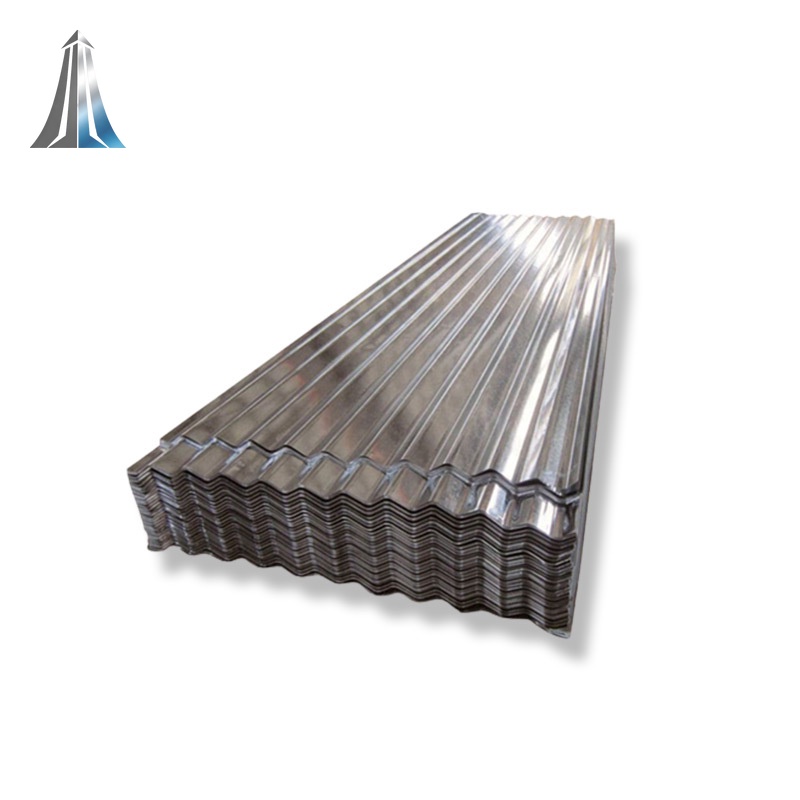

Galvalume steel corrugated roof sheet is made of galvanized steel sheet used for roofing and coated with zinc. The zinc coating provides moisture and oxygen protection for the base steel. According to the galvanizing process, it can be divided into hot-dip galvanized steel plate and electro-galvanized steel plate. The corrugated design improves its strength and enable it to withstand harsh weather conditions.

Galvalume steel sheet is a type of steel that is coated with zinc for protection by an electroplating process. The galvanized layer is applied to cold rolled steel at low temperatures. So it is also known as cold galvanized steel.
